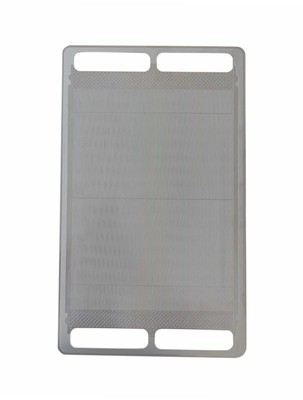

Mixed precious metal oxide titanium-based mesh anode for cathodic protection The metal oxide anode is composed of a layer of metal oxide with electrocatalytic activity on the titanium substrate. The oxide coating has small polarization and extremely low consumption rate.

By adjusting the composition of the oxide layer, it can be adapted to different environments, such as seawater, fresh water, and soil media. Because the metal oxide anode has advantages that other anodes do not have, it has become the most ideal and promising auxiliary anode material at present. Ribbon mixed metal oxide anodes have been widely used as auxiliary anodes of mesh anode cathodic protection system at home and abroad for cathodic protection of new tank bottoms.

2, Product Specification:

We can custom-made MMO anode as per clients' requirement, the following specifications are our most popular products:

MMO Cylindrical Deep Well Anode
Barrel length(mm)	Barrel outer diameter(mm)	Anode length(mm)	Cable type
1000	75	800	PVDF/HMWPE
1500	100	1200	PVDF/HMWPE
2000	150	1800	PVDF/HMWPE
MMO Titanium Anode Ribbon/titanium conductive tape
Coating	Specifications	Standard length	Design life
Iridium-tantalum/ruthenium-iridium mixed oxide (MMO coating)	6.35mm×thickness 0.635mm12.7mm ×thickness 0.9mm	100m/volume 152m/volume	20year—40year
MMO mesh belt anode
Specifications (customizable)	Output current	Mesh size （mm）	Design life （year）
10mm x 76mm	2.8mA/m2	2.5 x 4.6 x 0.6	20、30、50、70
13mm x 76mm	3.5 A/m2	2.5 x 4.6 x 0.6	20、30、50、70
19mm x 76mm	5.28A/m2	2.5 x 4.6 x 0.6	20、30、50、70
1.10m x 76mm	18.8A/m2	34 x 76 x 0.64	20、30、50、70
1.20m x 76mm	24.4A/m2	34 x 76 x 0.89	20、30、50、70
1.20m x 76mm	37.8A/m2	25 x 51 x 0.89	20、30、50、70
MMO Titanium Wire Anode
Diameter (mm) length can be customized	Coating type	Output current (mA/m)	Design life（year）
1.5	ruthenium iridium, iridium tantalum, platinum plating	328	20—45
2	ruthenium iridium, iridium tantalum, platinum plating	500	20—45
3	ruthenium iridium, iridium tantalum, platinum plating	656	20—45
