Basic Information
|
| Substrate | Coating Content | Function
| Lifespan |
| Titanium (Ta1, Ta2) | Pt | Oxygen Evolution | As Required |
| Electrochemical Performance(Test condition: 1MOL H2SO4,10000A/M2) |
| Chlorine Evolution Potential | Polarizability | Accelerated Life Time | Accelerated Weightlessness |
| < 1.76V | < 40mV | > 1000 Hours | 1 mg
|
1, Application Area:

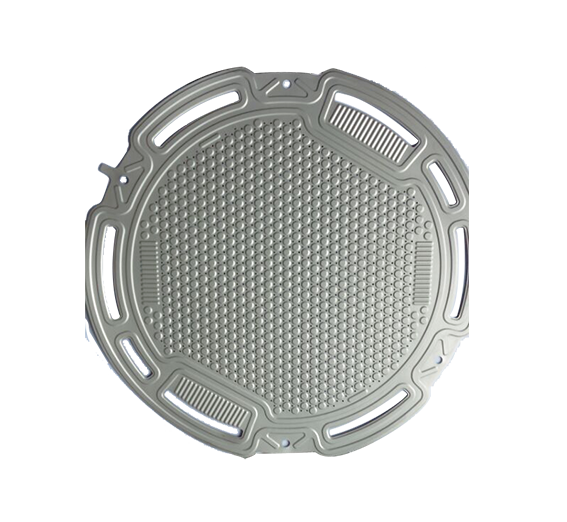

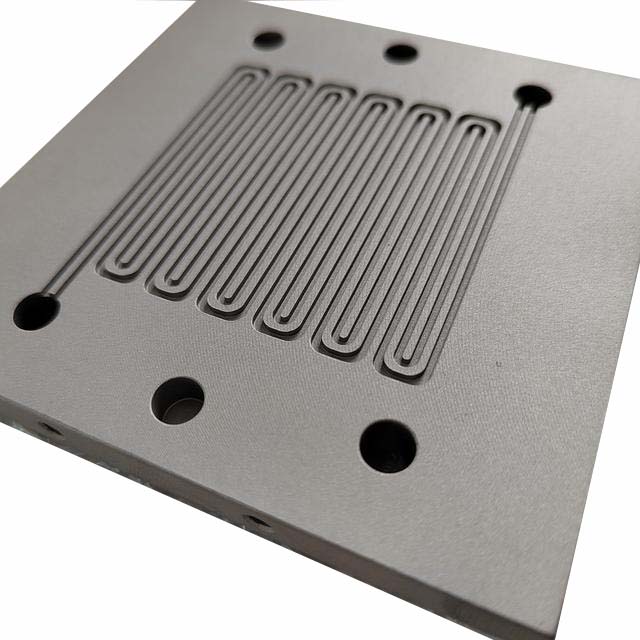

Hydrogen Genenration-bipolar plate for PEM electrolyzer.
Hydrogen Fuel cell.

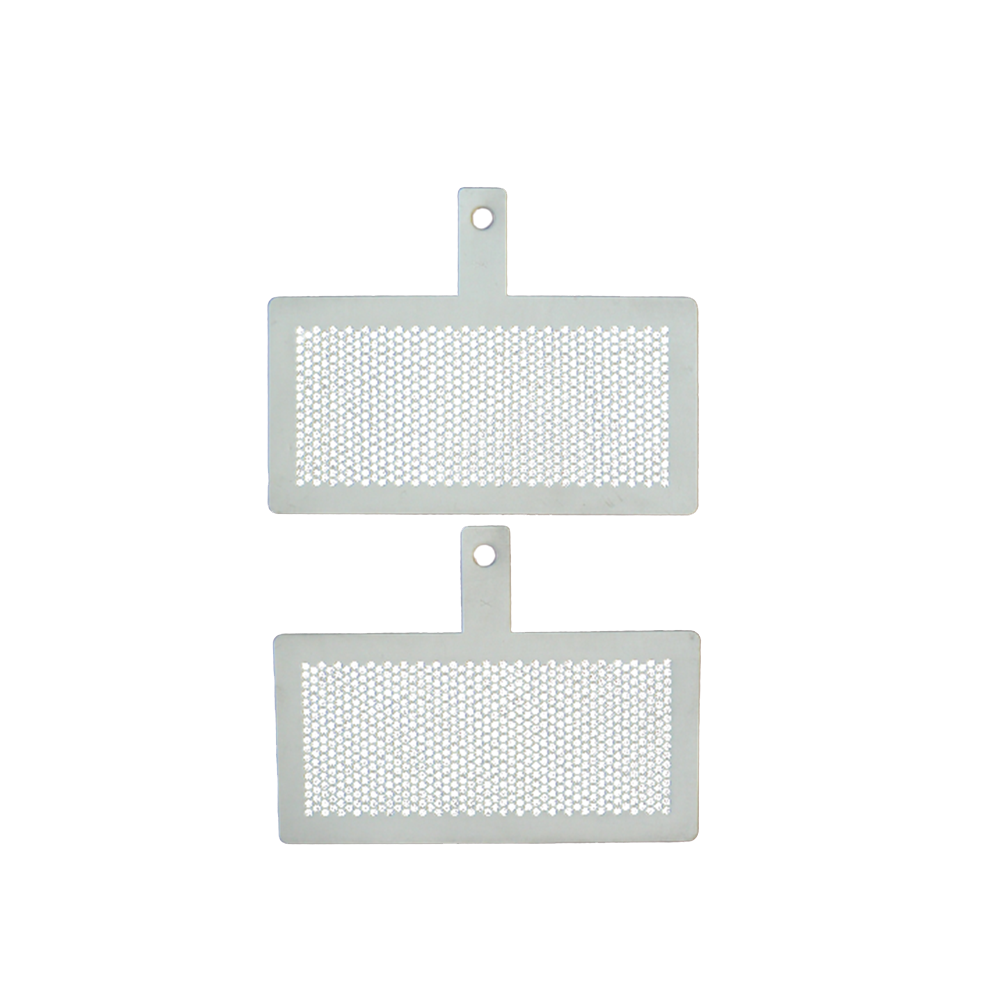

Ionized water.
Metal plating
2, Service Scope:
a, Produce new-made anode/ cathode as per customers' design.
b, Produce electrode assembly as per customers' design.
c, Re-coating old electrodes.
d, Advice suitable electrode with best coating choice.
3, Product introduction:
As an electrode material, platinum is widely used in electroplating, organic electrolysis synthesis, electrolytic wastewater treatment and fuel cells. The platinum electrode has the characteristics of strong corrosion resistance, high catalytic activity, high oxygen evolution potential, and low hydrogen evolution potential. It is excellent in performance. The anode material is also a cathode material with excellent performance.
Aiming at the shortcomings of the traditional process, our company has developed a platinum coating sintering technology, so that the anode is processed at high temperature during production, the coating is uniform, no voids, good toughness, good bonding force, and avoiding the cold coating process The resulting coating is brittle, poorly uniform, high porosity, easy to burst and other problems, and low cost. After the enhanced life test of the platinum-plated anode of the ionized water machine in cooperation with our company.
4.Price and after-sales service
Tengyu anode have obvious performance-price ratio advantages and we track each sold products covering the full service time.
